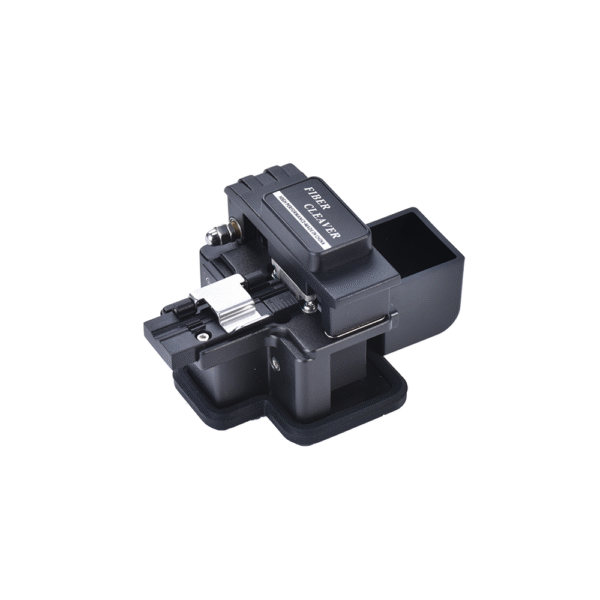

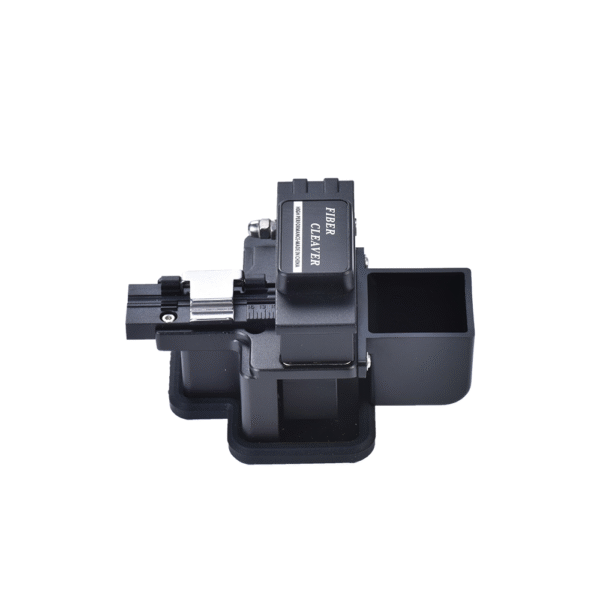

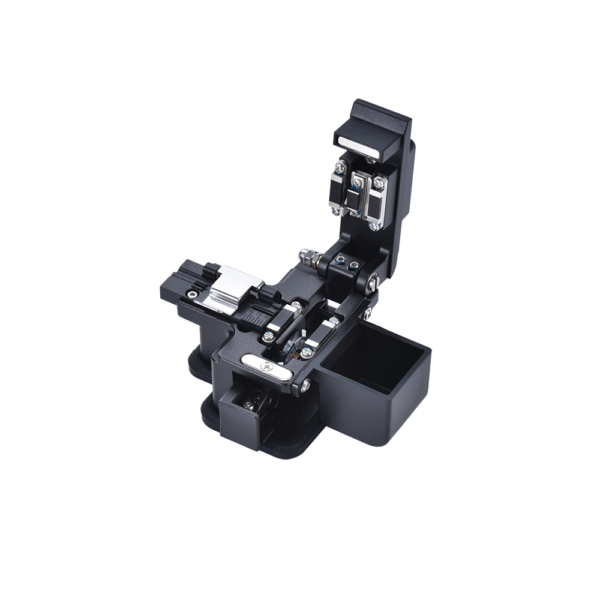

ET-30 Small Size Fiber Cleaver
Model No.: ET-30
Applicable Fibers: Single fiber
Operation Mode: Semiautomatic
Supported Fiber Types: Φ0.25/Φ0.9/Φ3.0/3.0*2.0mm
Coating diameter: 125μm
Cleave length: 10~17mm
Cleaving angle: ≤0.8°
Blade life: >48000 Times
Weight : ≈249g
Size: 87W*65D*54H(mm)
Blade Auto Return: Yes
Fine Cleaving: Yes
Auto Rotating Blade: No
Off-cut Collector: Yes
Blade: B-2-20
Packing Information: 28pcs/ CTN，9kg，44*27.5*19cm
Description
The optical fiber cleaver is equipped with a single fiber adapter designed for 0.25/0.9mm fiber. Users can easily remove or install the single fiber adapter, allowing for seamless switching between mass and single fiber cleaving. Its user-friendly design ensures straightforward operation and versatility, making it an ideal choice for various cleaving needs.
Features:
- Precision Cuts: Achieve precise cleaves with an angle of ≤0.6° for consistent quality.
- Extended Blade Life: Enjoy up to 2000 cleaves per point with 24 blade cut points, ensuring durability.
- Versatile Length: Adapt to different fiber needs with cleave lengths ranging from 9-24mm.
- Durable Design: Built to last with a sturdy 22mm blade diameter for longevity.
- Compact and Lightweight: Portable at 270g and compact dimensions (58W68D58H mm) for convenience on the go.
Specification
| Model No.: | ET-30 |
| Applicable Fibers: | Single fiber |
| Operation Mode: | Semiautomatic |
| Supported Fiber Types: | Φ0.25/Φ0.9/Φ3.0/3.0*2.0mm |
| Coating diameter: | 125μm |
| Cleave length: | 10~17mm |
| Cleaving angle: | ≤0.8° |
| Blade life: | >48000 Times |
| Weight : | ≈249g |
| Size: | 87W*65D*54H(mm) |
| Blade Auto Return: | Yes |
| Fine Cleaving: | Yes |
| Auto Rotating Blade: | No |
| Off-cut Collector: | Yes |
| Blade: | B-2-20 |
| Packing Information: | 28pcs/ CTN，9kg，44*27.5*19cm |
Application: Fiber Cutting
| Weight | 0.249 kg |
|---|---|
| Dimensions | 8.7 × 6.5 × 5.4 cm |
