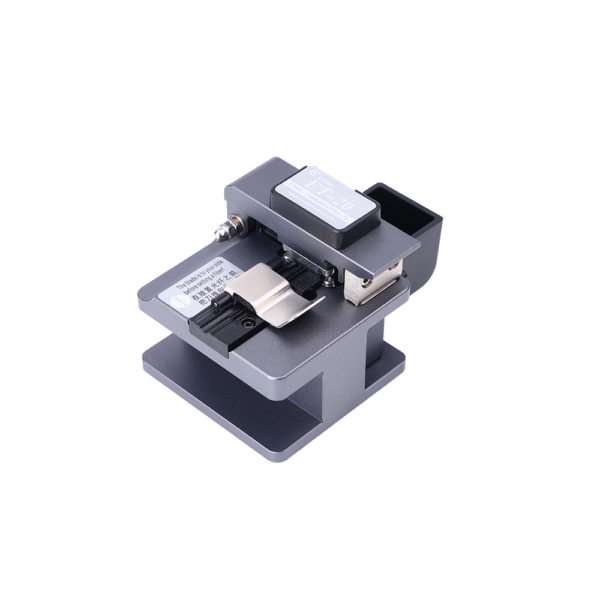

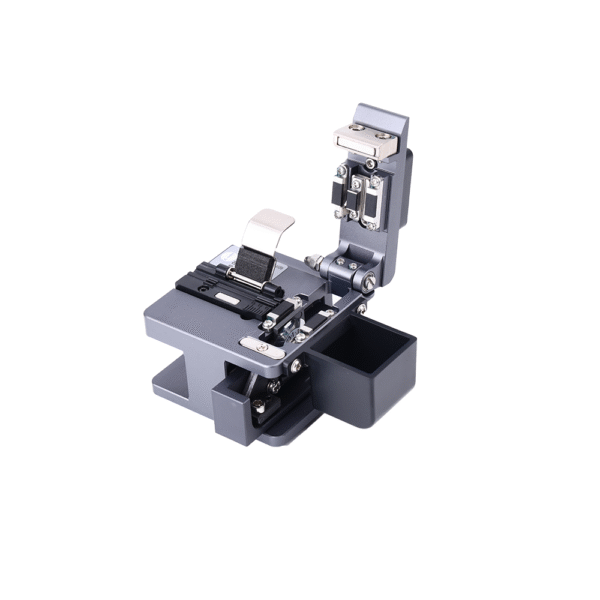

ET-20 Small Size Fiber Cleaver

Model No.: ET-20
Applicable Fibers: Single fiber
Operation Mode: Semiautomatic
Supported Fiber Types: Φ0.25/Φ0.9/Φ3.0/3.0*2.0mm
Coating diameter: 125μm
Cleave length: 10~17mm
Cleaving angle: ≤0.8°
Blade life: >48000 Times
Weight : ≈270g
Size: 85W*68D*58H(mm)
Blade Auto Return: Yes
Auto Rotating Blade: No
Off-cut Collector: Yes
Blade: B-3-20
Packing Information: 28pcs/ CTN,9kg,44*27.5*19cm

Description

The optical fiber cleaver is equipped with a single fiber adapter designed for 0.25/0.9/3.0mm fiber. Users can easily remove or install the single fiber adapter, allowing for seamless switching between mass and single fiber cleaving. Its user-friendly design ensures straightforward operation and versatility, making it an ideal choice for various cleaving needs.

Features:

  1. Stress-Free Operation: Provides smooth and stable cutting with a long lifespan (one-year warranty), making it suitable for customers with demanding requirements.
  2. Compact and Lightweight: Designed for handheld operation, it’s affordable and ideal for on-the-go use (small cleaver).
  3. Proven Market Performance: Four years of market testing have demonstrated stable performance, establishing it as the go-to choice for backbone machines (large cleaver).
  4. Metallic Aesthetics: Features a metal finish, enhancing its overall look and feel.

Specification

Model No.: ET-20
Applicable Fibers: Single fiber
Operation Mode: Semiautomatic
Supported Fiber Types: Φ0.25/Φ0.9/Φ3.0/3.0*2.0mm
Coating diameter: 125μm
Cleave length: 10~17mm
Cleaving angle: ≤0.8°
Blade life: >48000 Times
Weight : ≈270g
Size: 85W*68D*58H(mm)
Blade Auto Return: Yes
Auto Rotating Blade: No
Off-cut Collector: Yes
Blade: B-3-20
Packing Information: 28pcs/ CTN,9kg,44*27.5*19cm



Application:  Fiber Cutting

Weight 0.27 kg
Dimensions 8.5 × 6.8 × 5.8 cm
